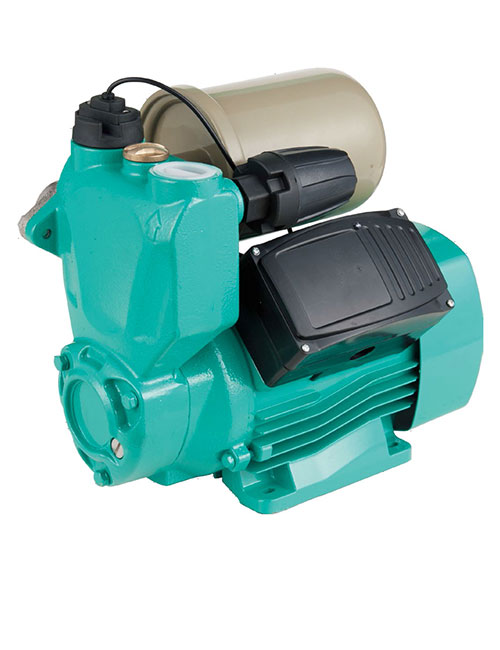

HQSm Automatic Self-priming Pump

HQSm Automatic Self-priming Pump

Cloud Zoom small image

Application

Suitable for use with clean water that does not contain abrasive
particles and liquids that are not chemically aggressive towards
the materials from which the pump is made.
Featuring compactness, reliability and easy to use, they are
suitable for use In domestc applications such as the distribution
of wator in combination with small pressure sets, for irrigation
of gardens and for drawing water from tanks, The pump comes
complete with a flap-check valve.
The pump should be installed in an enclosed environment, or at
least sheltered form inclement weater.

Motor

Two-pole induction motor(n=285Or.p.m)
Insulation class B
Protection lP44
Continous service Si
Thermal protector
Single-phase 220V/5OHz, 60Hz if request


Operating conditions

Liquid temperature up to 60o c
Ambient temperature up to 4Ooc
Total sucition lift up to 9m

Materials of construction:

Pump body: Cast iron
Pump cover: Cast iron, brass if request
Motor housing: Cast auminlum
Impollor: Brass
Motor shaft: Carbon steel, A1S1420, 304SS if request
Mechanical seal: Ceramic.Grahie
Boanngs: 6201 RZJ6201 RZ

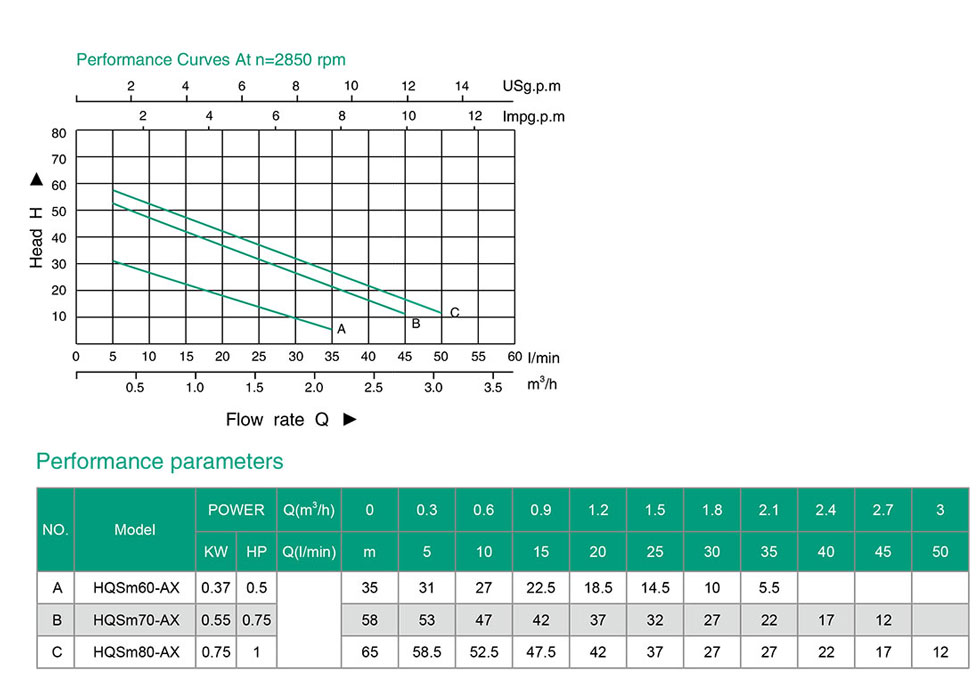

  • Performance Curves
