KBZ SUBMERSIBLE DRAINAGE PUMP

The body of motor and pump is made of rigid castiron for long-lasting durability.Greatly increased maximum submersion depth dueto mechanical seal resistant to high pressure.Semi-open impeller made of high chrome alloymatch with wearplate(ductile iron) ach

Application

Civil engineering
Mines,quarries,coal ore & slurries
Sewage treatment plants
General pumping purposes

Specifi cation

Capacity: up to 160 m 3 /h
Head: up to 57 meters
Power:1.5KW(2HP) to 15 KW (20HP)
Power supply: three phase 380 V±10%, 50Hz
380 V±10%, 60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Water temperature: up to 40℃
Max.water depth: 25m

Special features on request

Other voltages
The length of cable is optional

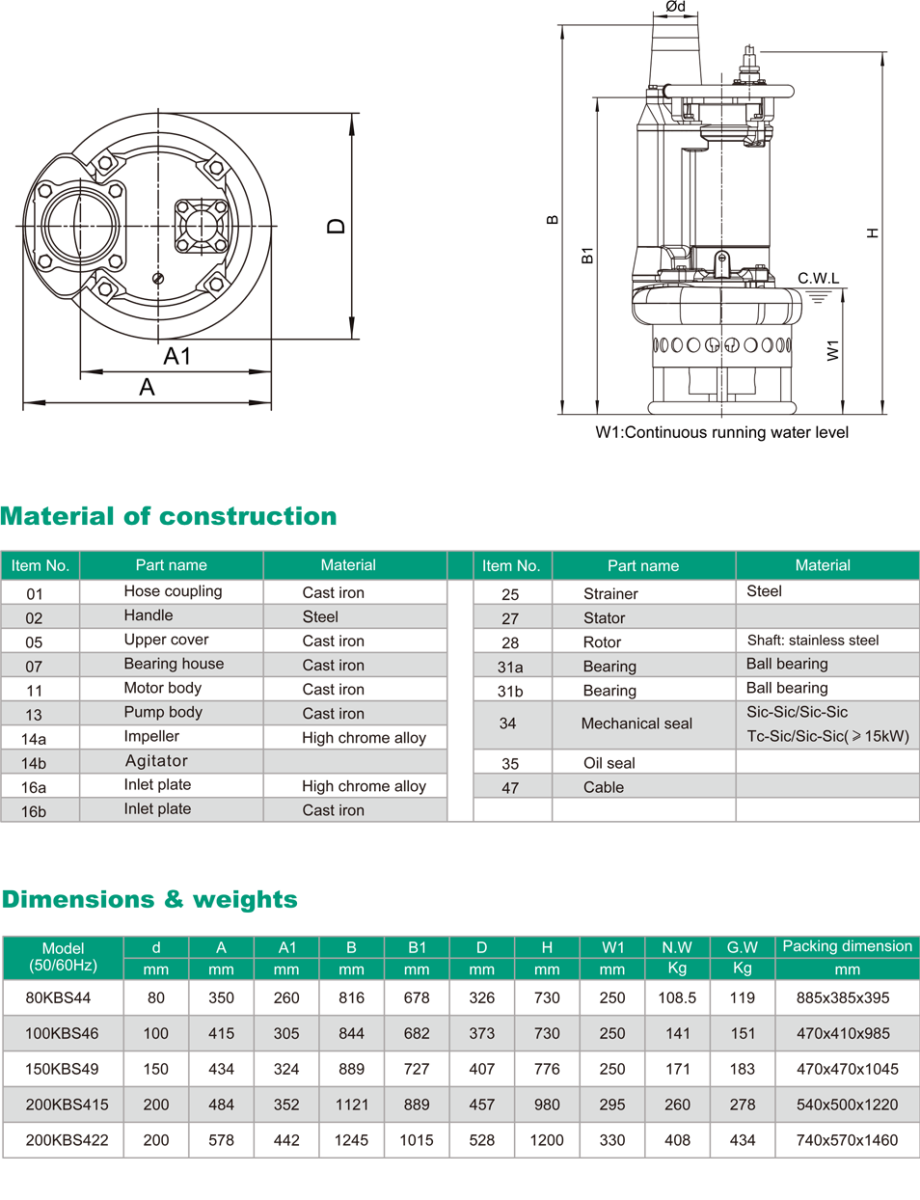

Materials of construction
Performance curves
