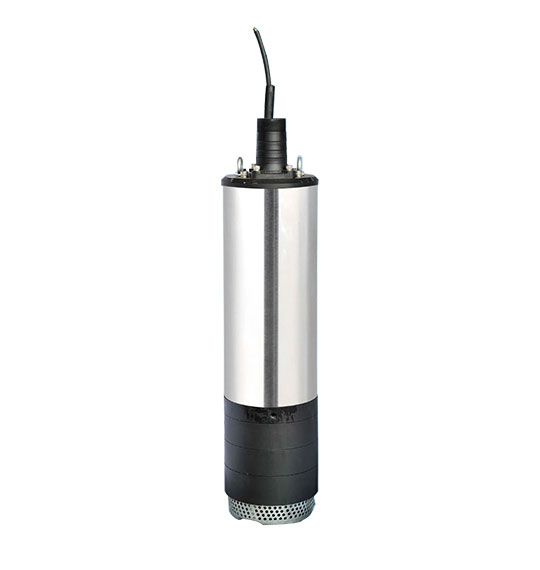

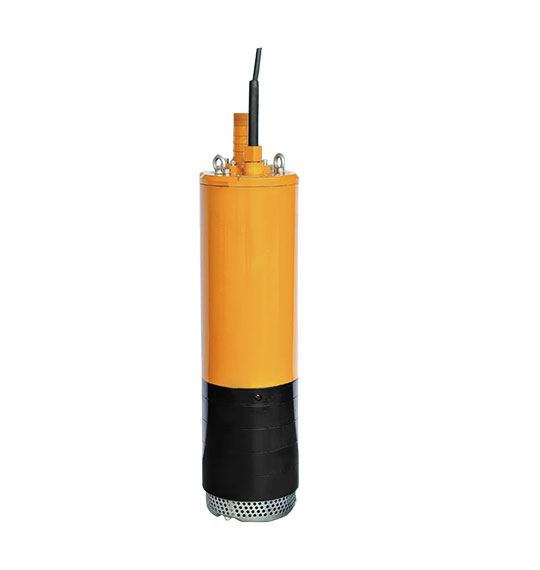

QXN Buit in Submersible Engineering Pump

The hydraulic part is under the motor, the pumped water flows around the motor, thus cooling the motor, even when the pump is only partially immersed, it can also run safely.

Cloud Zoom small image

Application

Mining, construction, factory, household, garden,
agricultural irrigation, etc.

Specification

Water temperature: up to 40℃
PH: 6.5 to 8.5
Power supply: three phase, 380V±10%,50Hz
380V±10%,60Hz
Power:2.2~22kW
Insulation class: B
Protection class: IP68
Capacity: up to 90m3/h
Head: up to 148m
Maximum immersion depth:20m
Cable length:15m

Special features on request

Other voltages
The length of cable is optional

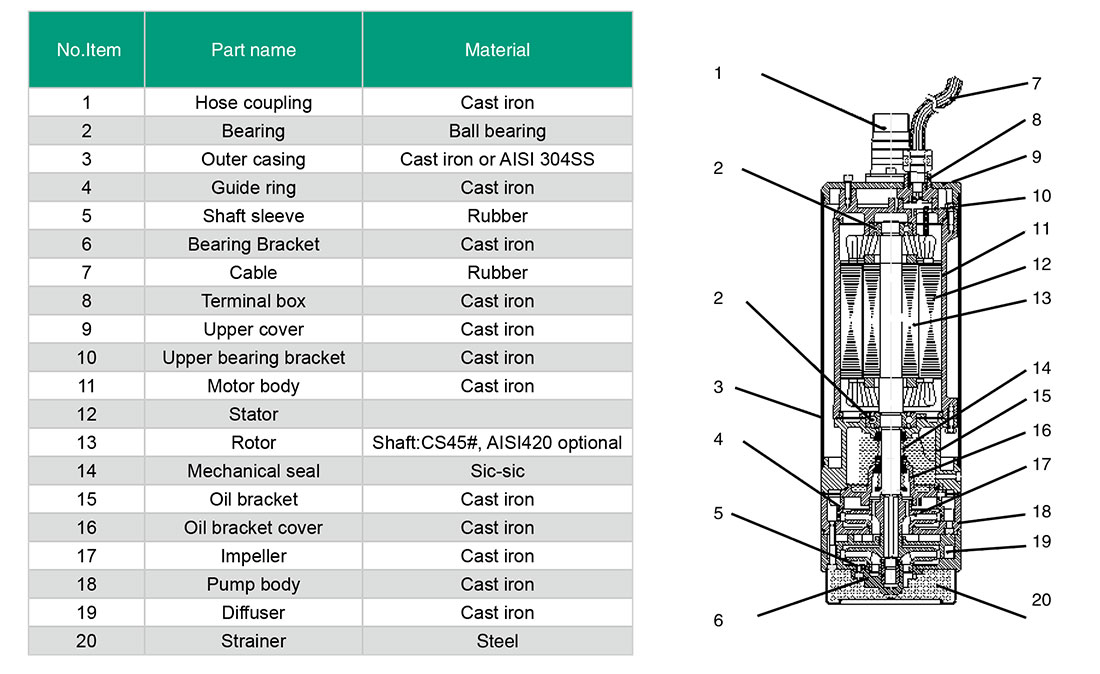

  • Materials of construction

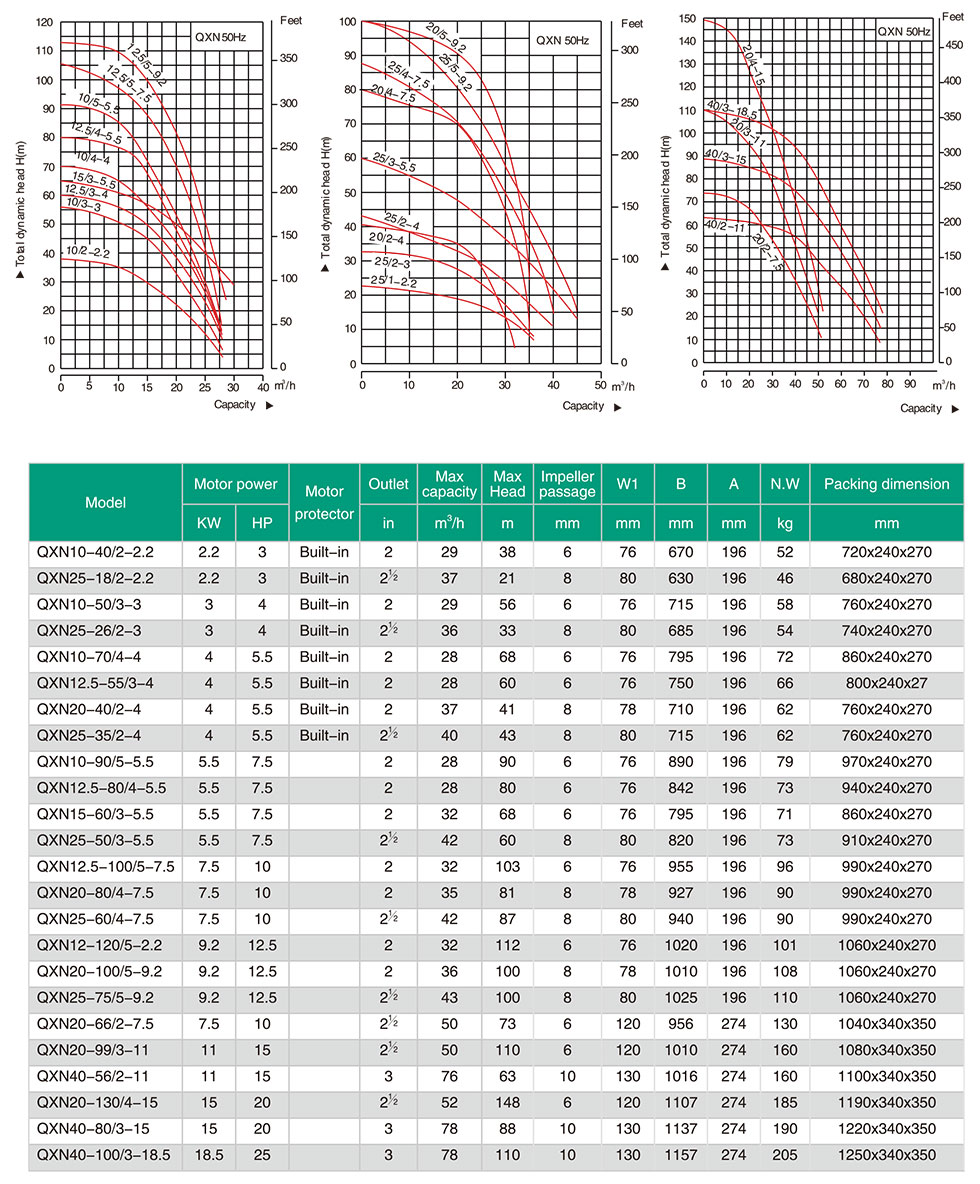

  • Performance curves
