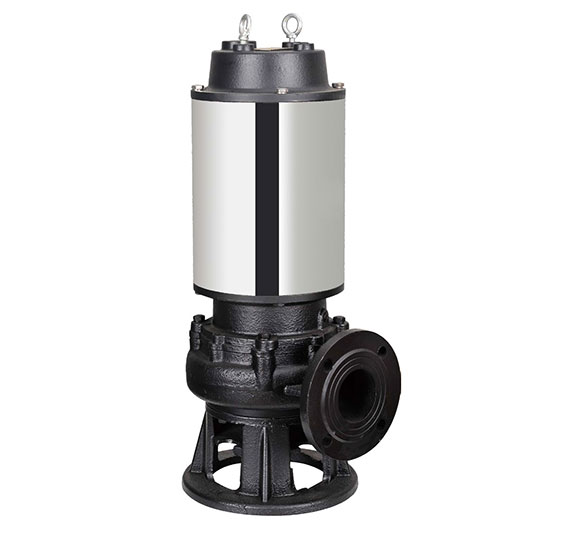

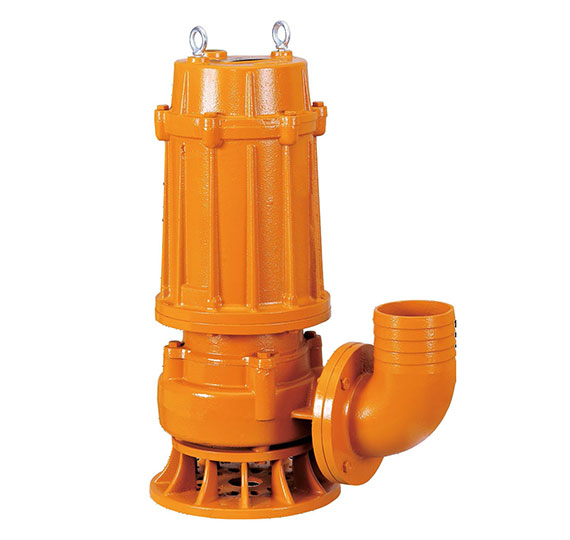

Brief Introduction

Non-clogging impeller can pump large solids covering full range
of head.Chrome plated shaft ensures high corrosion resistant
and wear resistant.Designed for pumping sewage, waste water,
rainwater and living water containing solid grains, various fabric,
sludge and solid .

Application

Municipal project,Industrial building,Mining,Civil engineering

Special features on request

Other voltages
The length of cable is optional

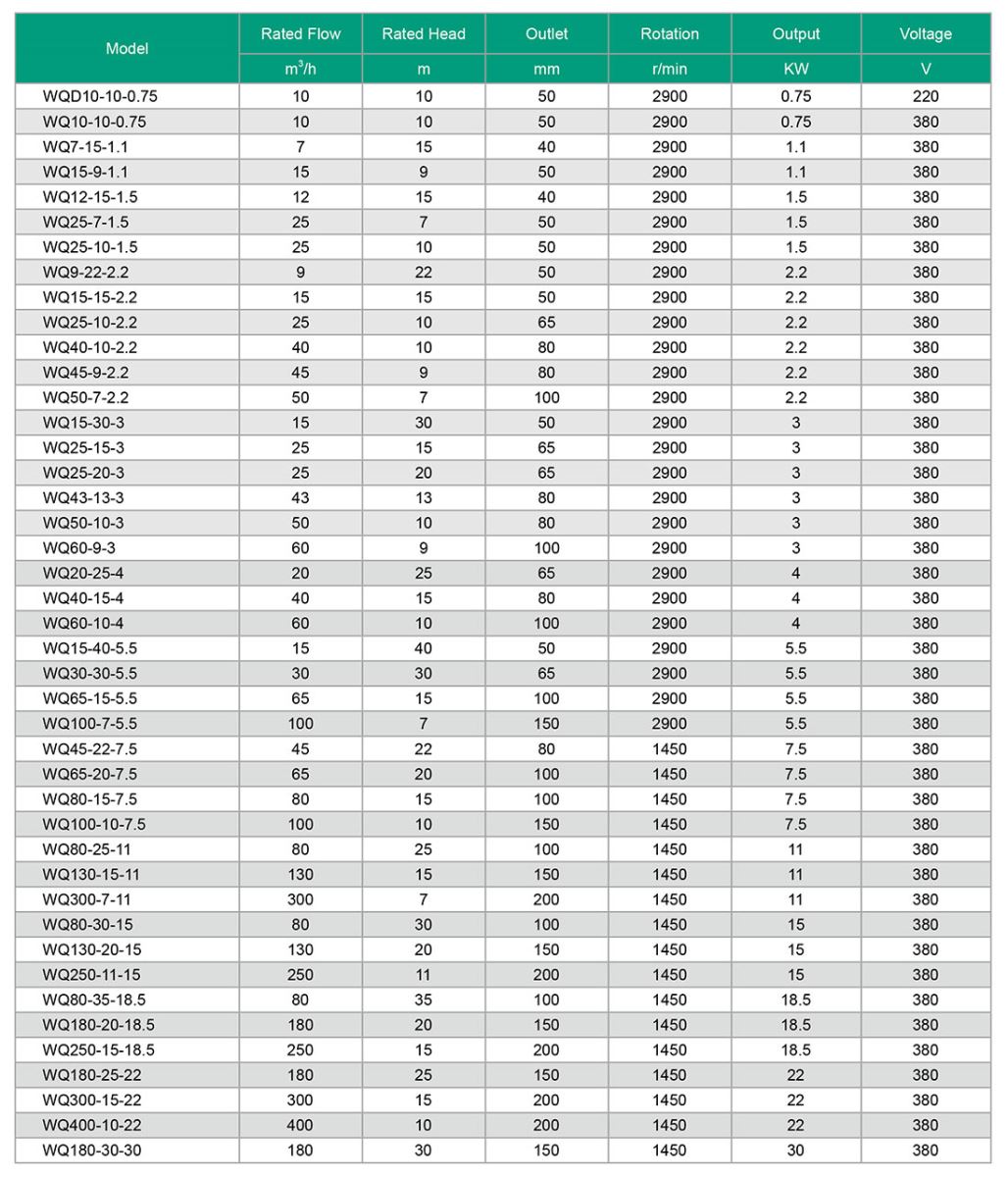

Specification

Water temperature: up to 35℃
PH: 6.5 to 8.5
Density of liquid: 1.3g/cm3
Power supply: single phase 220V±10%,50Hz;
three phase 380V±10%,50Hz
Power: 0.75~45kW
Insulation class: B
Protection class: IP 68
Motor protection:≤7.5kW Built in
Capacity: up to 800m3/h
Head: up to 48m
Maximum immersion depth:10m
Cable Legth ：8m
