WQV Submersible Drainage Pump

WQV Submersible Drainage Pump

Cloud Zoom small image

Applications

Draining flooded area such as cellar, car washing shop as
well as underground car park, handling sewage and emptying
cesspoll

Materials:

Pump body: Cast iron
Motor bracket: Stainless steel
Impeller: Cast iron
Motor shaft: CS45#,ss316 with CS45# if request
Mechanical sea: Ceramic-graphite, silicon carbide-carbide alloy

Working conditions:

Submersion depth:5 meters
Liquid temperature: up to +40°C
Ambient temperature: up to +40°C
Max. working pressure: 6 bar
Allowed suspended solid size up to 45mm

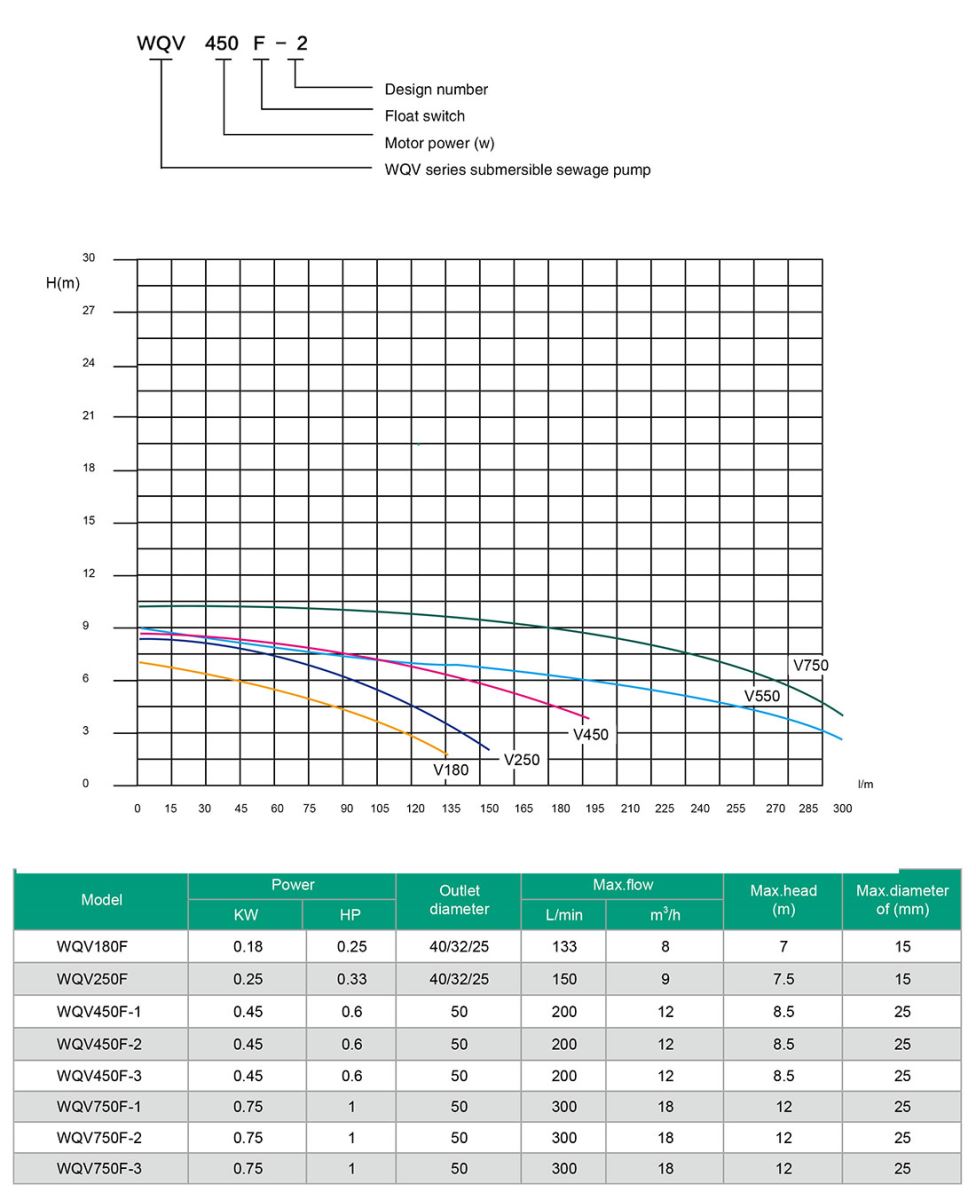

  • Performance Parameters1

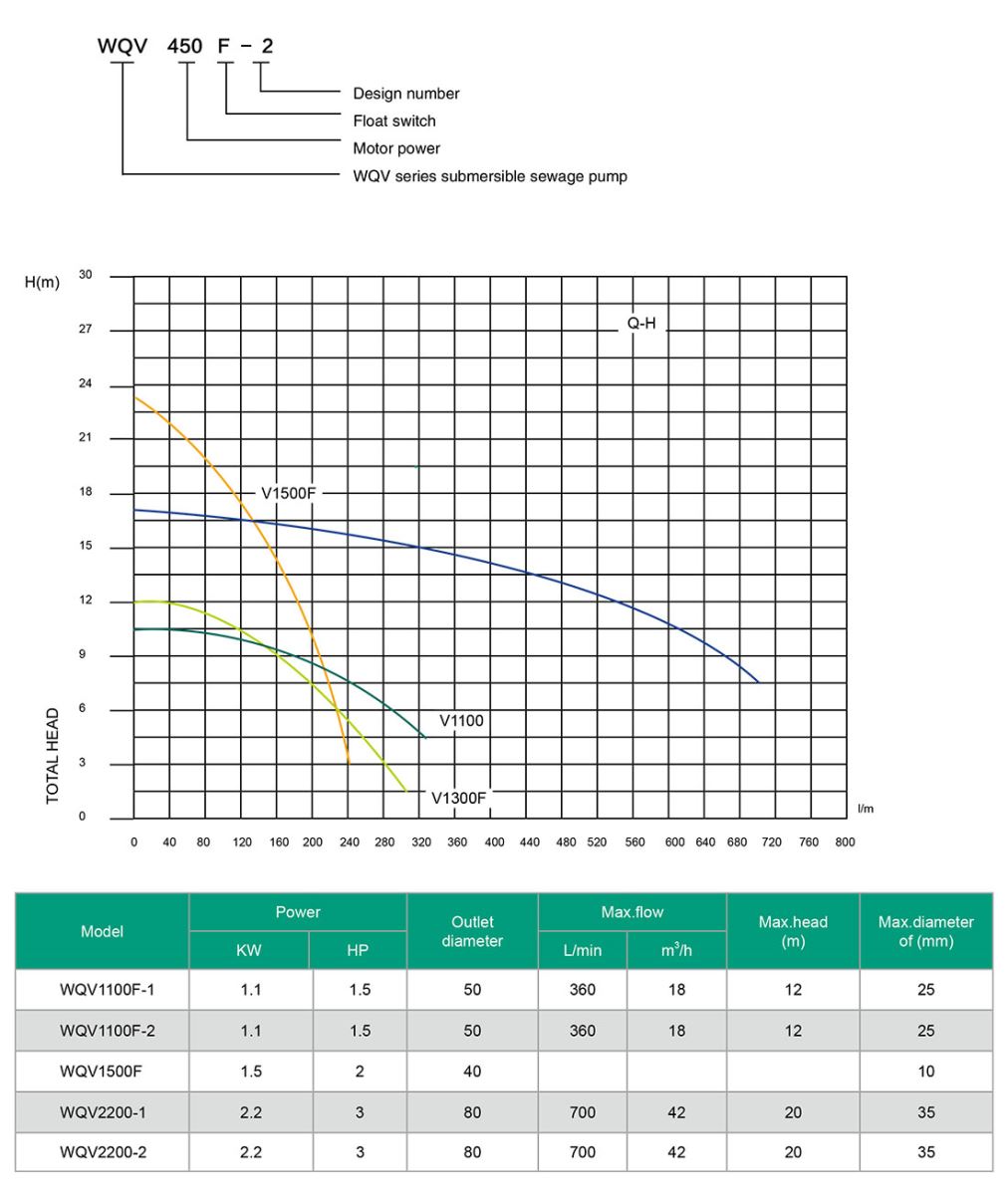

  • Performance Parameters2
